RADIAL FORGING MACHINE GFM SHK-10 #1242

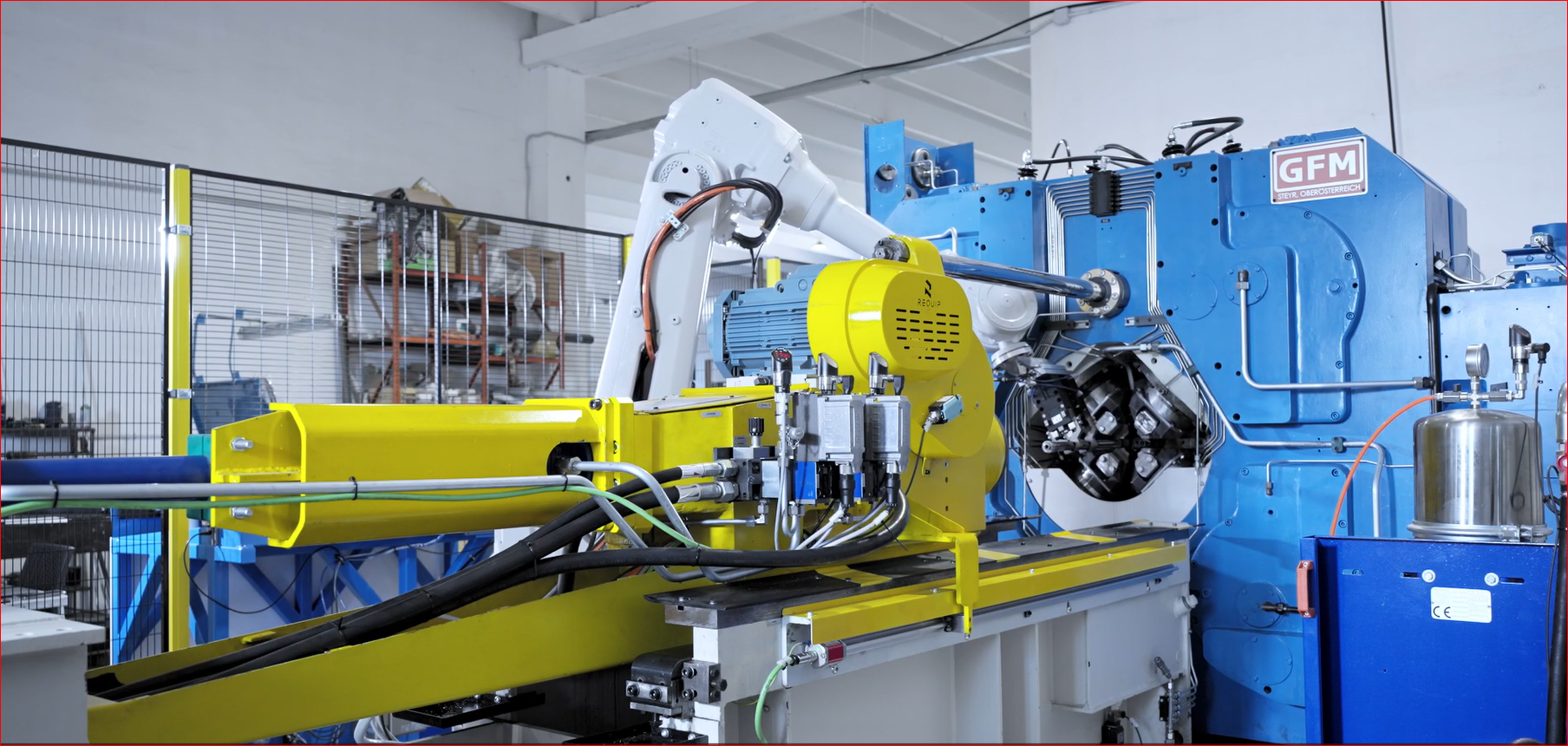

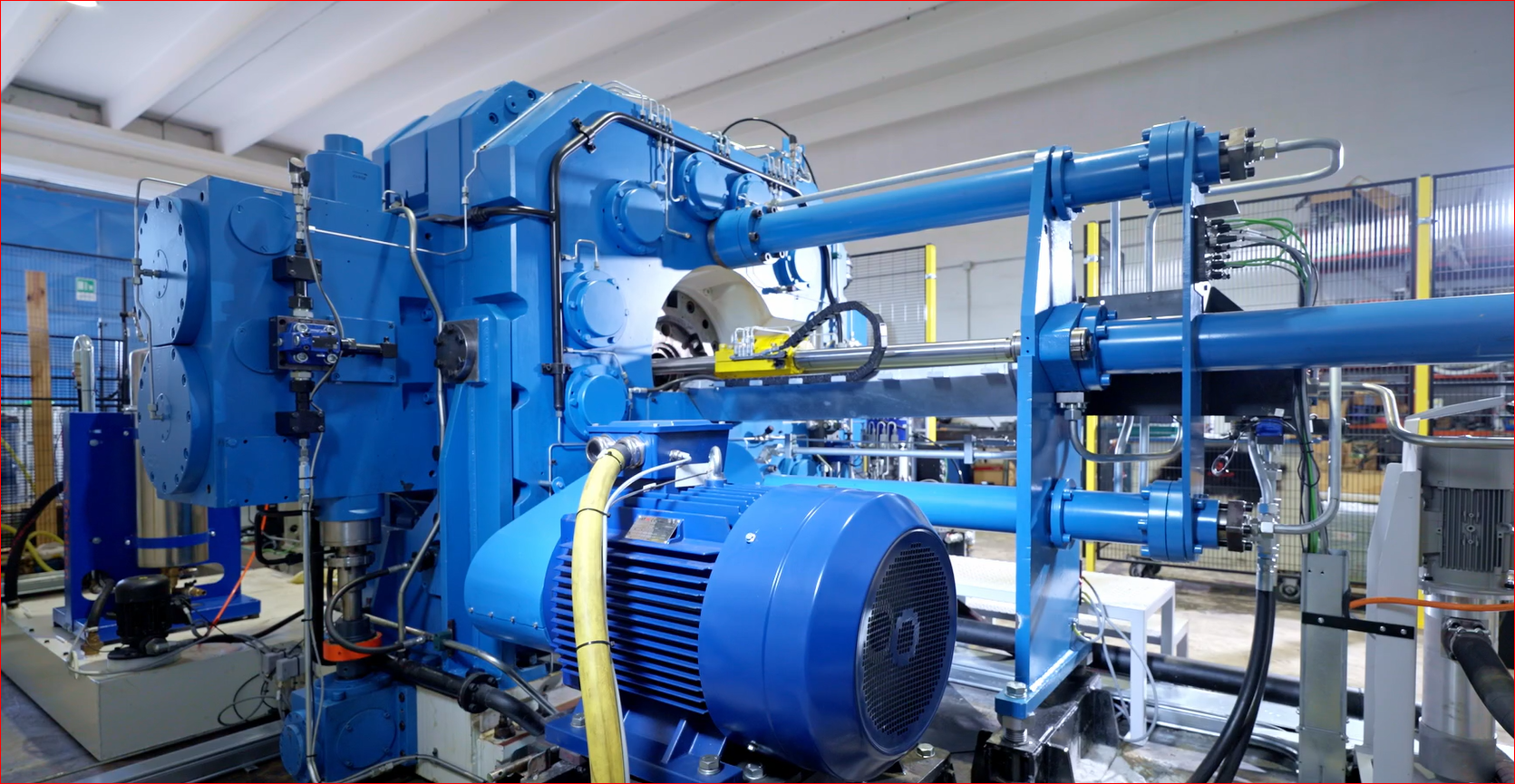

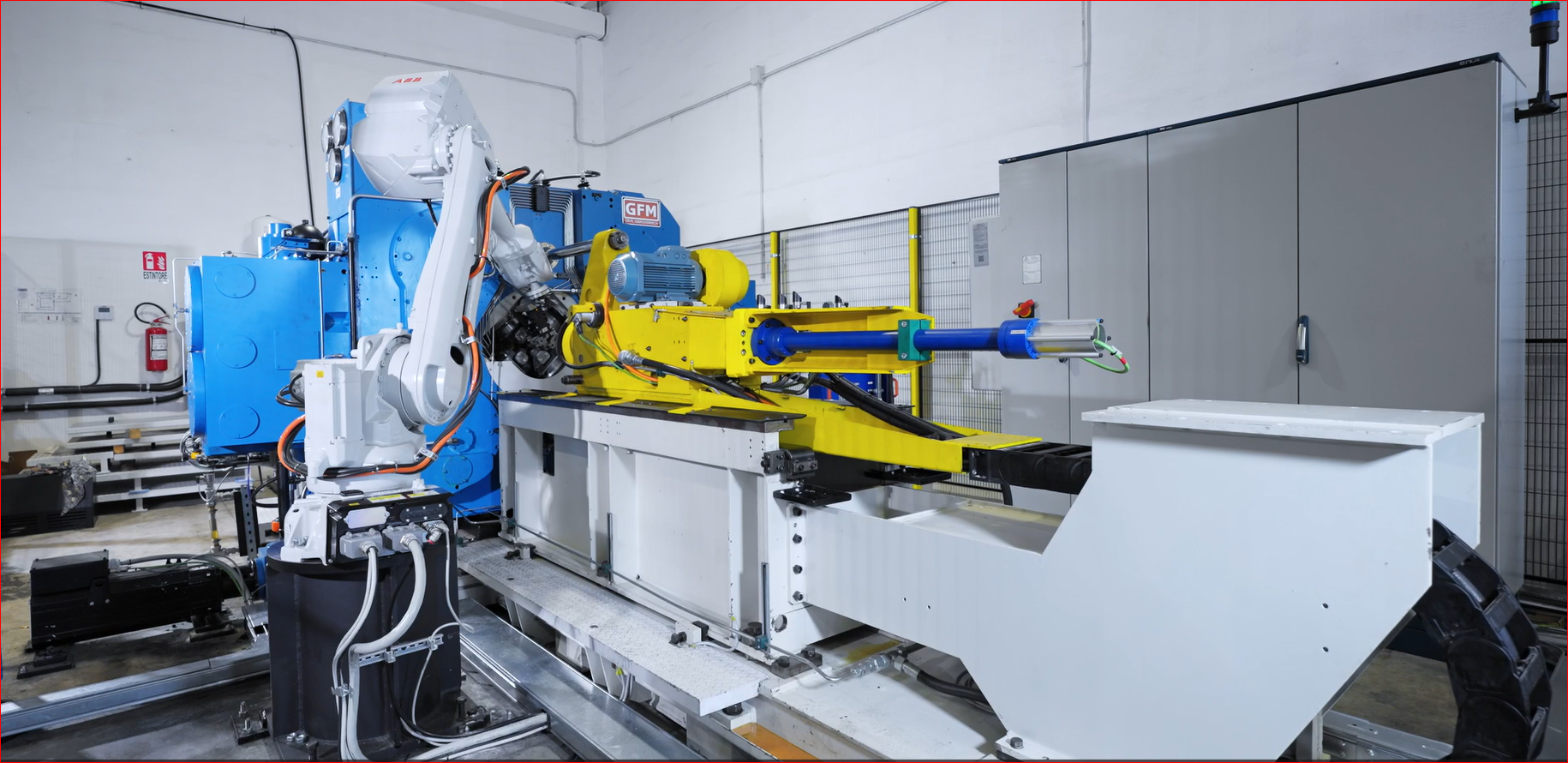

Radial Forging Machine GFM SHK-10 #1242
Small size rapid forging machine
Year of manufacture: 1971
Condition: Retrofitted (2019)
Weight: 29 tons
Location: Asturias, Spain
Price: on request

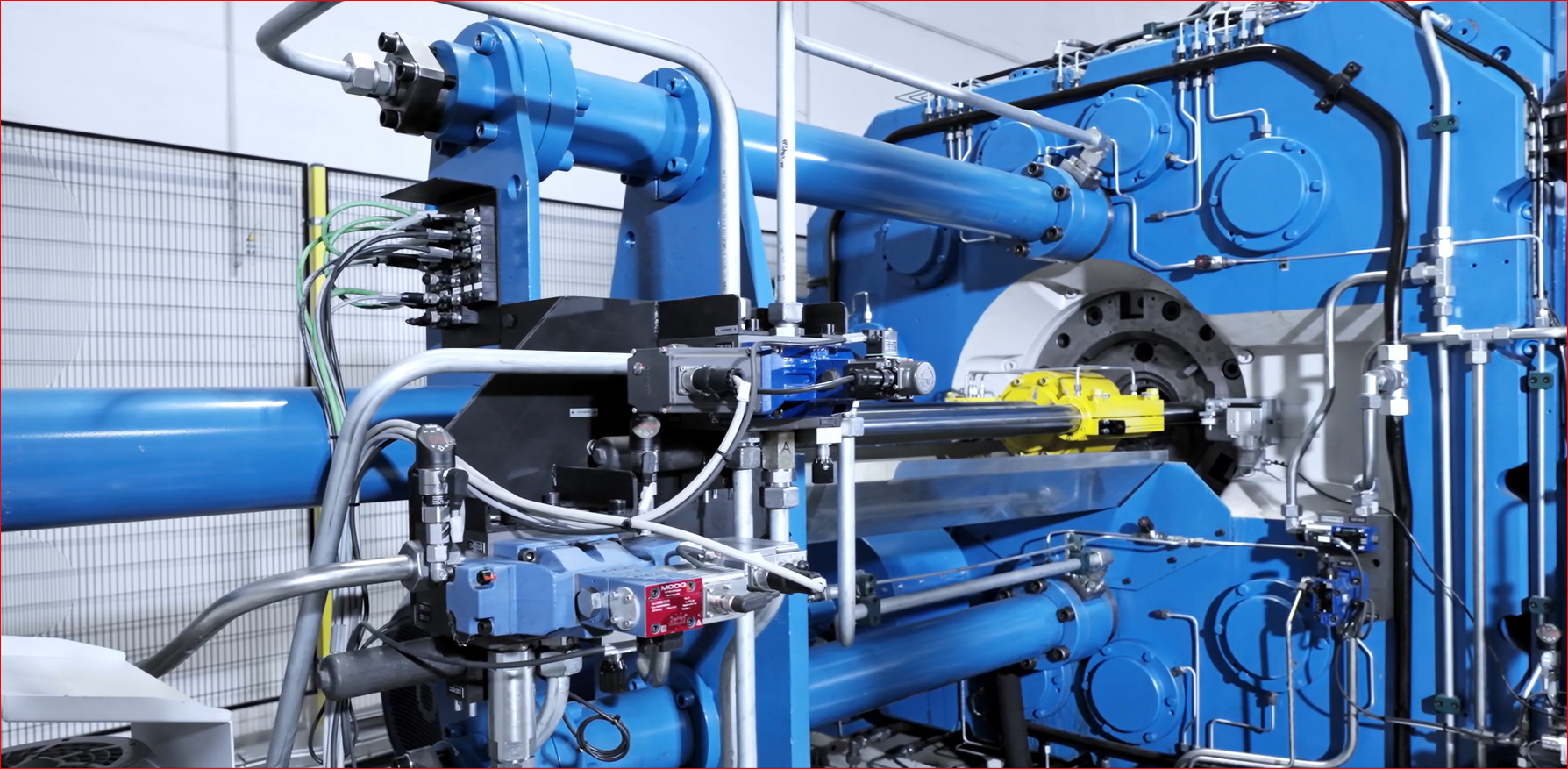

Forging Box
Number of forging hammers 4
Max. forging force per hammer 1250 kN
Number of strokes 1200 1/min
Hammer lenght 135 mm
Diameter setting range 60 mm
Forge eccentric 3,5 mm

Chuck head
Clamping force max. 50 kN
Advance speed max. 20000 mm/min
Stroke 1290 mm
Workpiece rotation 35-71 1/min
Workpiece lenght max. 900 mm

Counter holder
Clamping force max. 50 kN
Advance speed max. 20000 mm/min
Stroke 1290 mm

Mandrel
Clamping force max. 20 kN
Advance speed max. 18000 mm/min
Stroke 800 mm

GFM 6000-GP-RE

Dimensions
Lenght approx. 9100 mm

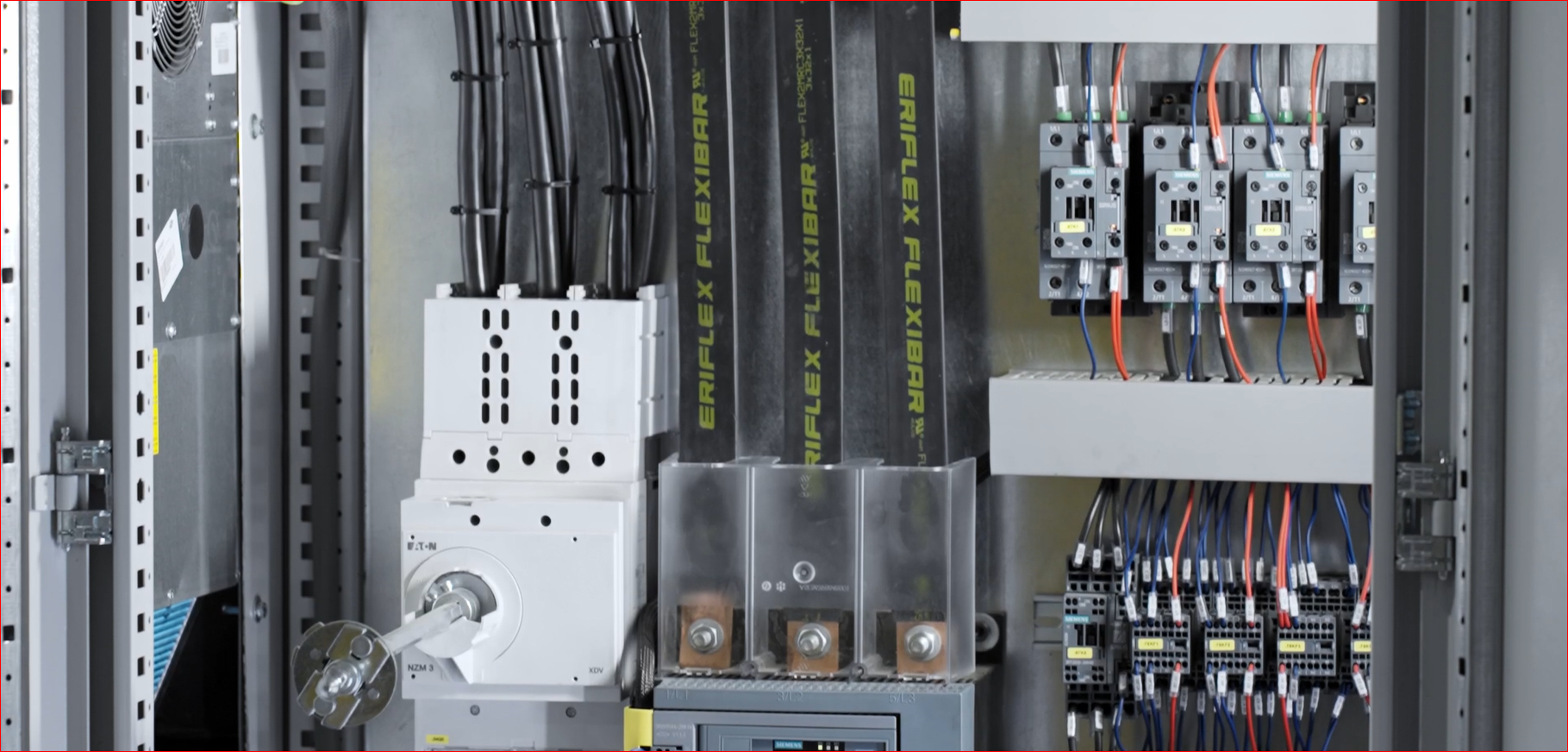

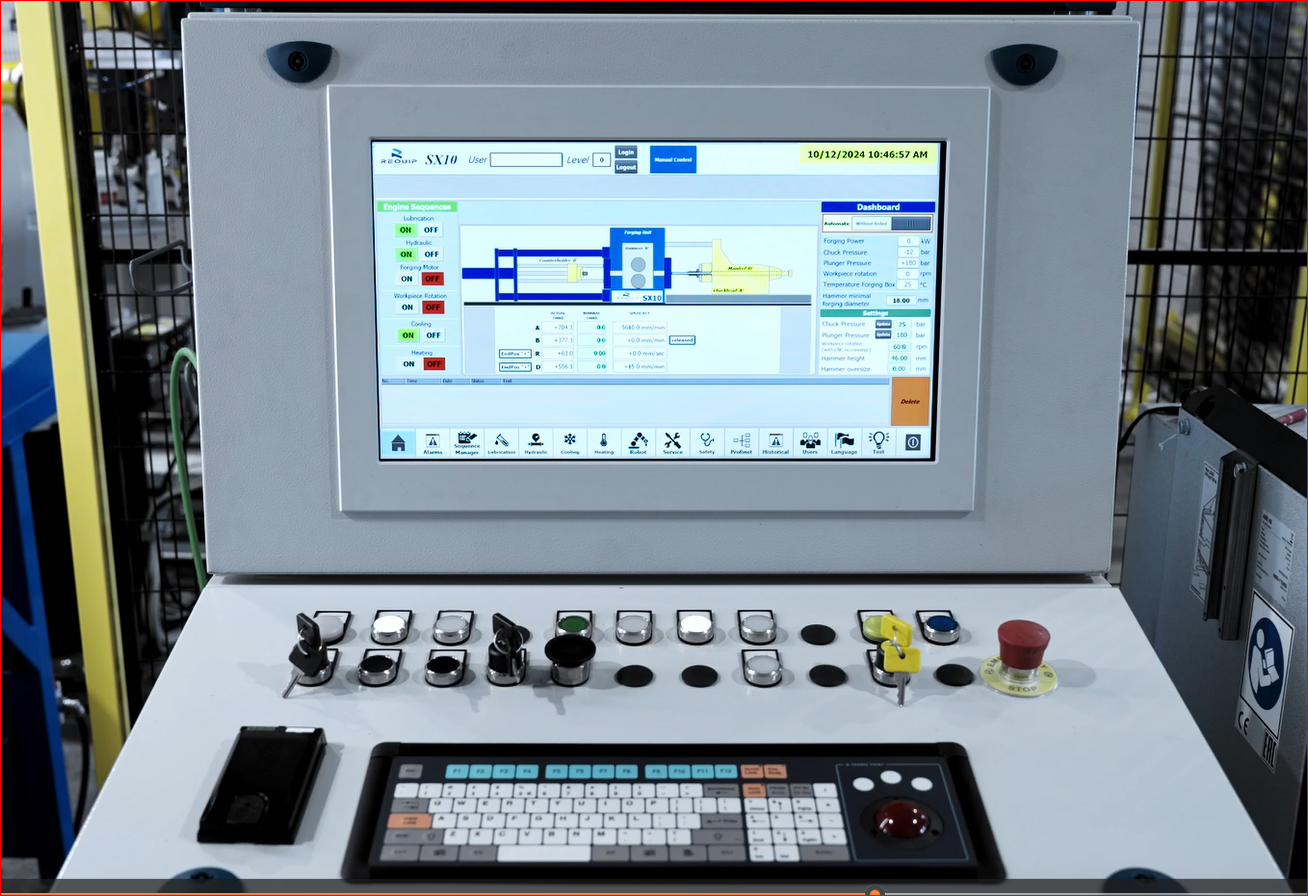

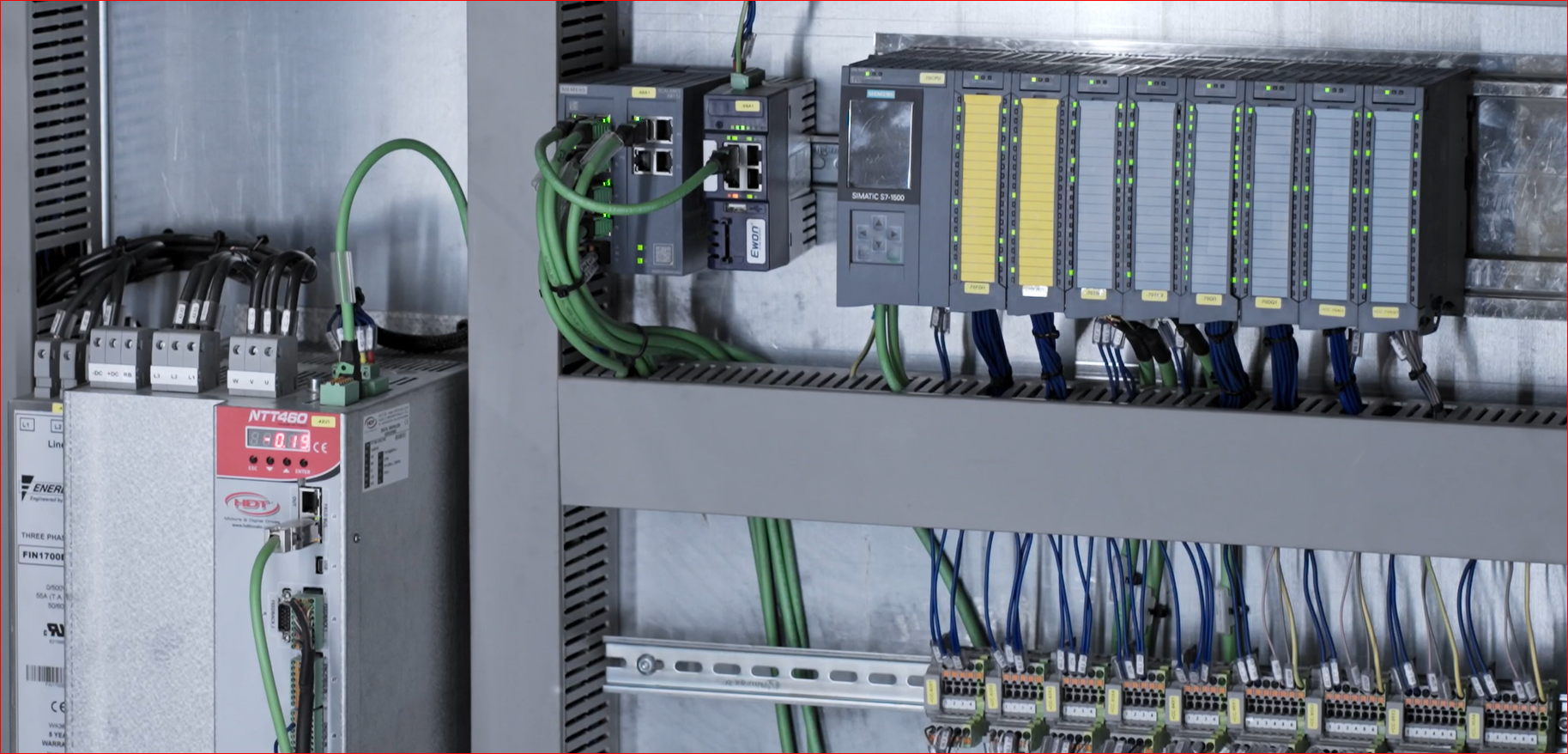

Width (with electrical cabinets and control panel) approx. 4500 mm
Height forging machine approx. 2150 mm
Forging height above floor 1250 mm
Weight (forging machine) approx. 29000 kg

Retrofitting work in progress:
Dismantle
100%
Inspect
100%
Clean
100%
Repair
100%
Update
100%
Paint
100%
Assemble
1%
Test
1%
